Harbor 외부 Postgres DB 연동 및 구성



• 네임스페이스 생성

kubectl create ns postgres

• Deployment 생성

apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres
  namespace: postgres
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      containers:
      - name: postgres
        image: postgres:15.7-alpine
        ports:
        - containerPort: 5432
        env:
        - name: POSTGRES_DB
          value: registry
        - name: POSTGRES_USER
          value: postgres
        - name: POSTGRES_PASSWORD
          value: mypassword
        volumeMounts:
        - mountPath: /var/lib/postgresql/data
          name: postgres-storage
      volumes:
      - name: postgres-storage
        persistentVolumeClaim:
          claimName: postgres-data-pvc



• 서비스 생성

apiVersion: v1
kind: Service
metadata:
  name: postgres-svc
  namespace: postgres
spec:
  selector:
    app: postgres
  ports:
  - protocol: TCP
    port: 5432
    targetPort: 5432

# pv.yaml
apiVersion: v1
kind: PersistentVolume
metadata:
  name: postgres-data-pv
  namespace: postgres
spec:
  capacity:
    storage: 50Gi
  accessModes:
  - ReadWriteOnce
  hostPath:
    path: "/mnt/data/postgres-data"
---
# pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-data-pvc
  namespace: postgres
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 50Gi





• DB툴로 생성

##계정 생성
CREATE USER harbor WITH ENCRYPTED PASSWORD 'harbor12345!';
GRANT ALL PRIVILEGES ON DATABASE registry TO harbor;

##권한 부여
GRANT ALL ON ALL TABLES IN SCHEMA public TO harbor;
GRANT ALL ON ALL SEQUENCES IN SCHEMA public TO harbor;







• Helm Yaml 수정
  • Helm YAML harbor 수정

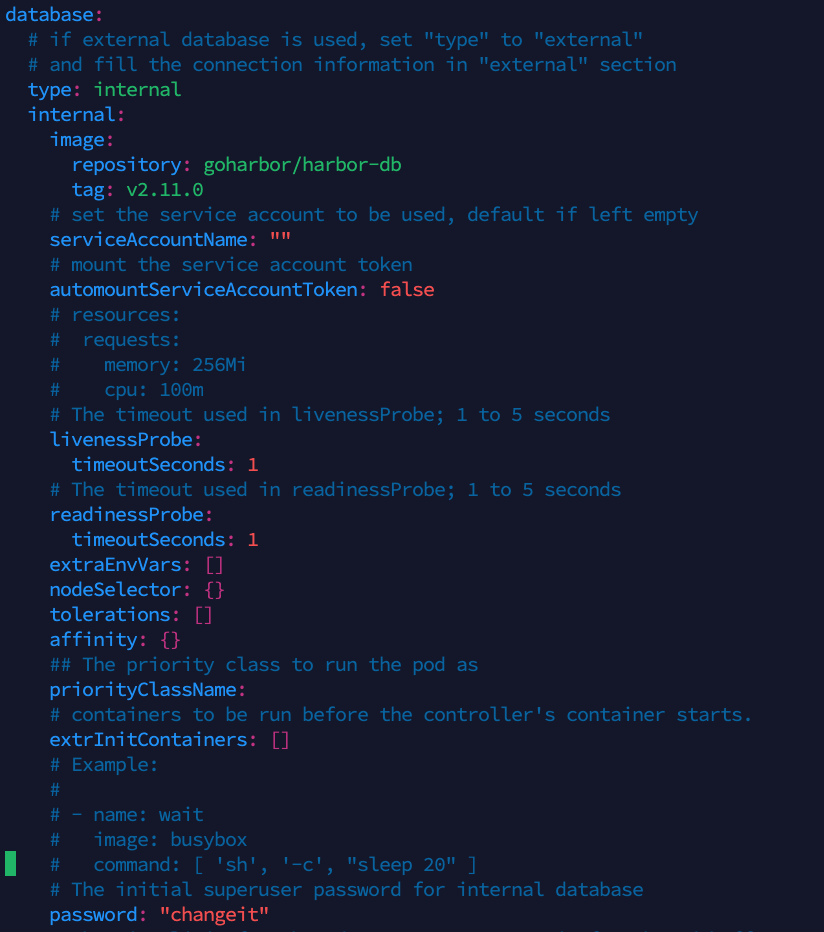

• 기존 YAML 정보
  • internal 정보 삭제

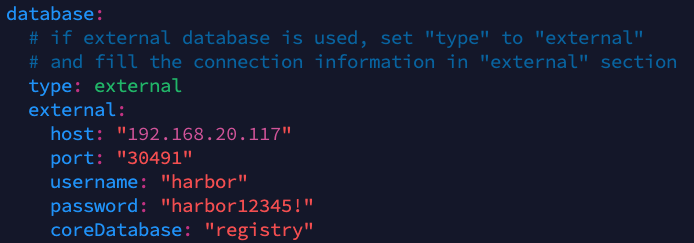

• External 정보 수정

database:
  # if external database is used, set "type" to "external"
  # and fill the connection information in "external" section
  type: external
  external:
    host: "192.168.20.117"
    port: "30491"
    username: "harbor"
    password: "harbor12345!"
    coreDatabase: "registry"

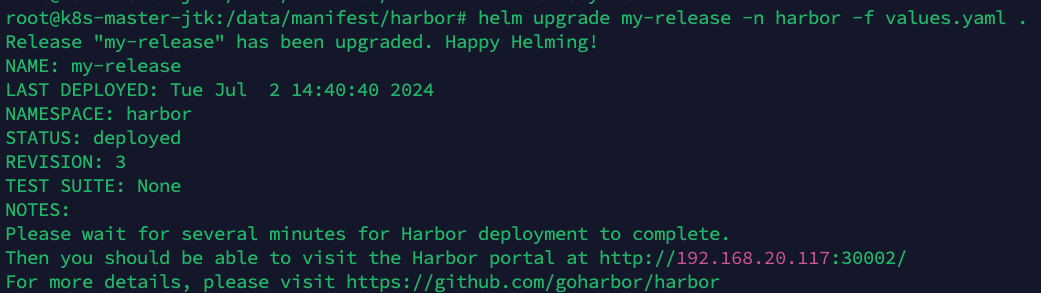

helm upgrade my-release -n harbor -f values.yaml .

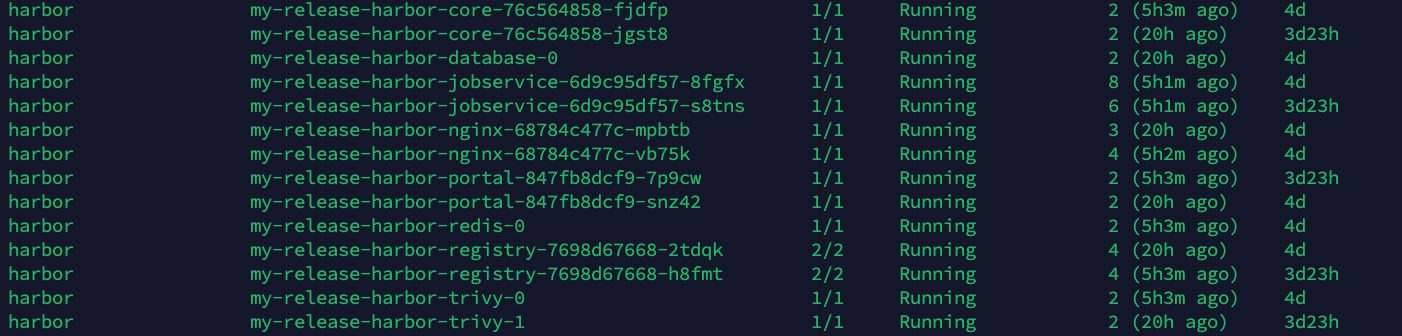

• Harbor 데이터베이스. internal 타입일 경우 database Pod로 동작

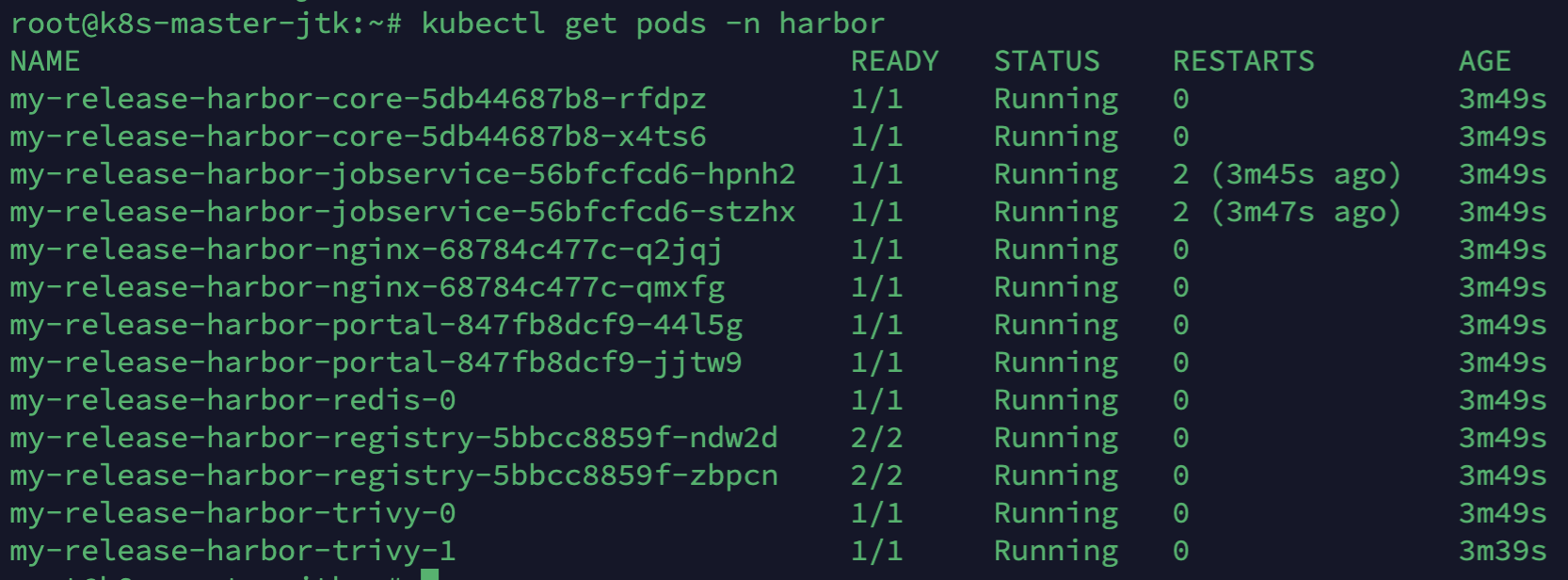

• 데이터베이스 external 으로 변경할 경우

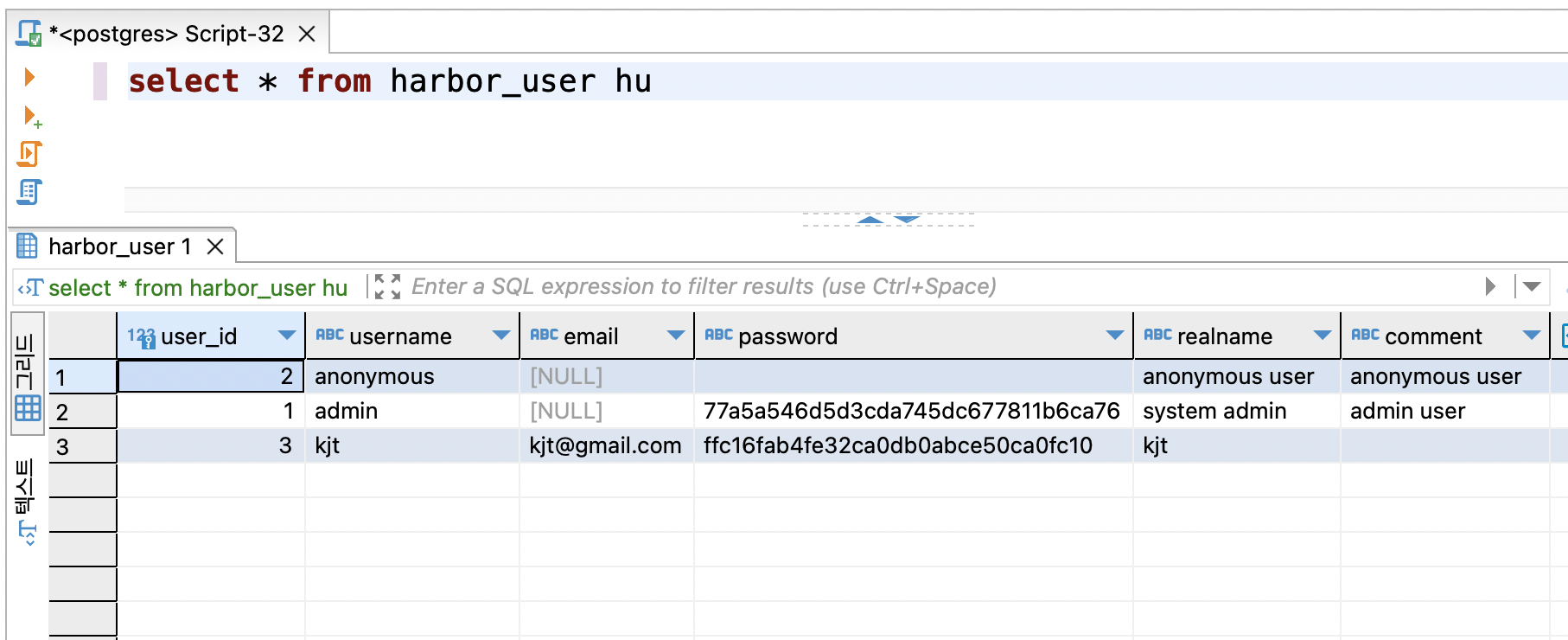

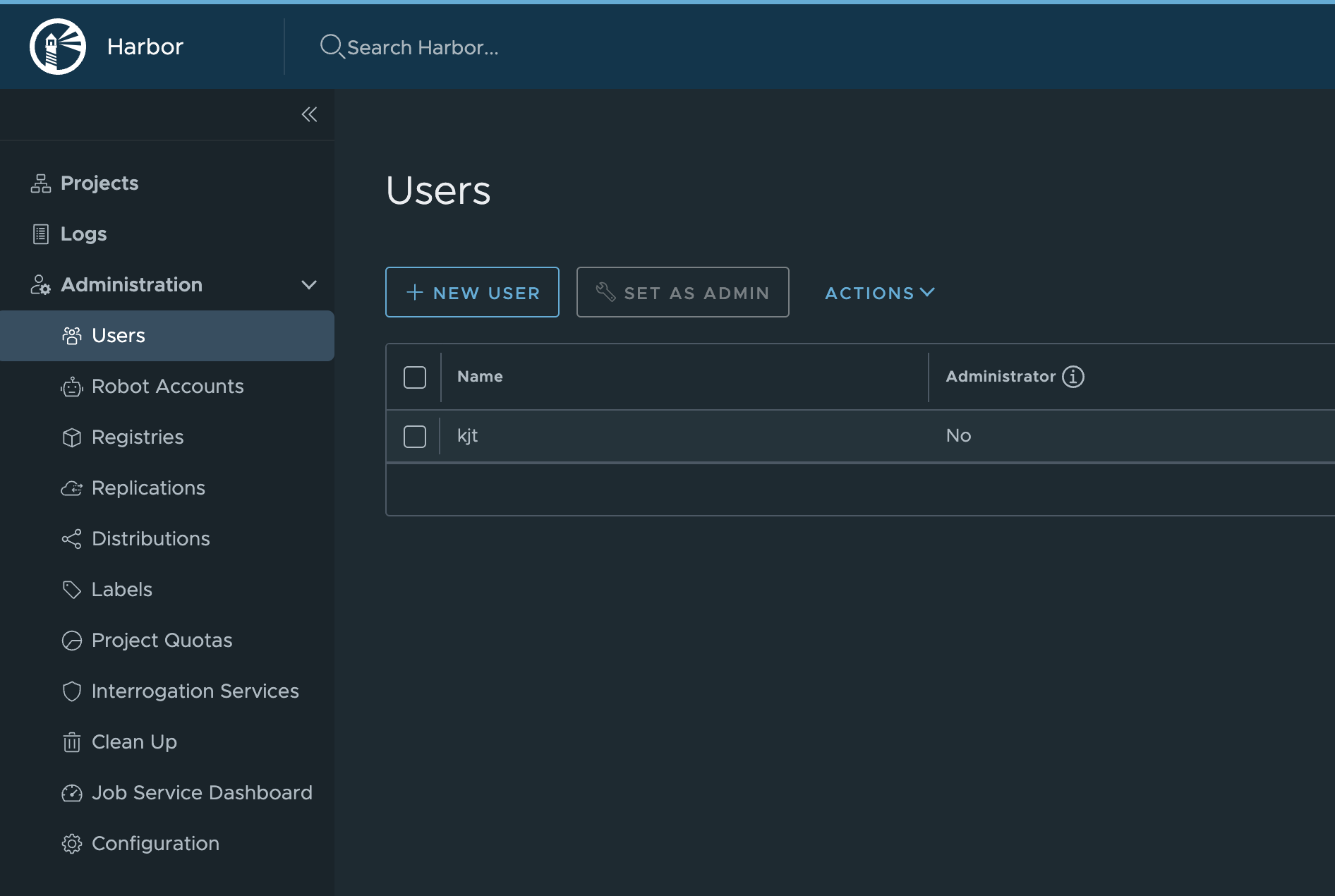

• User생성

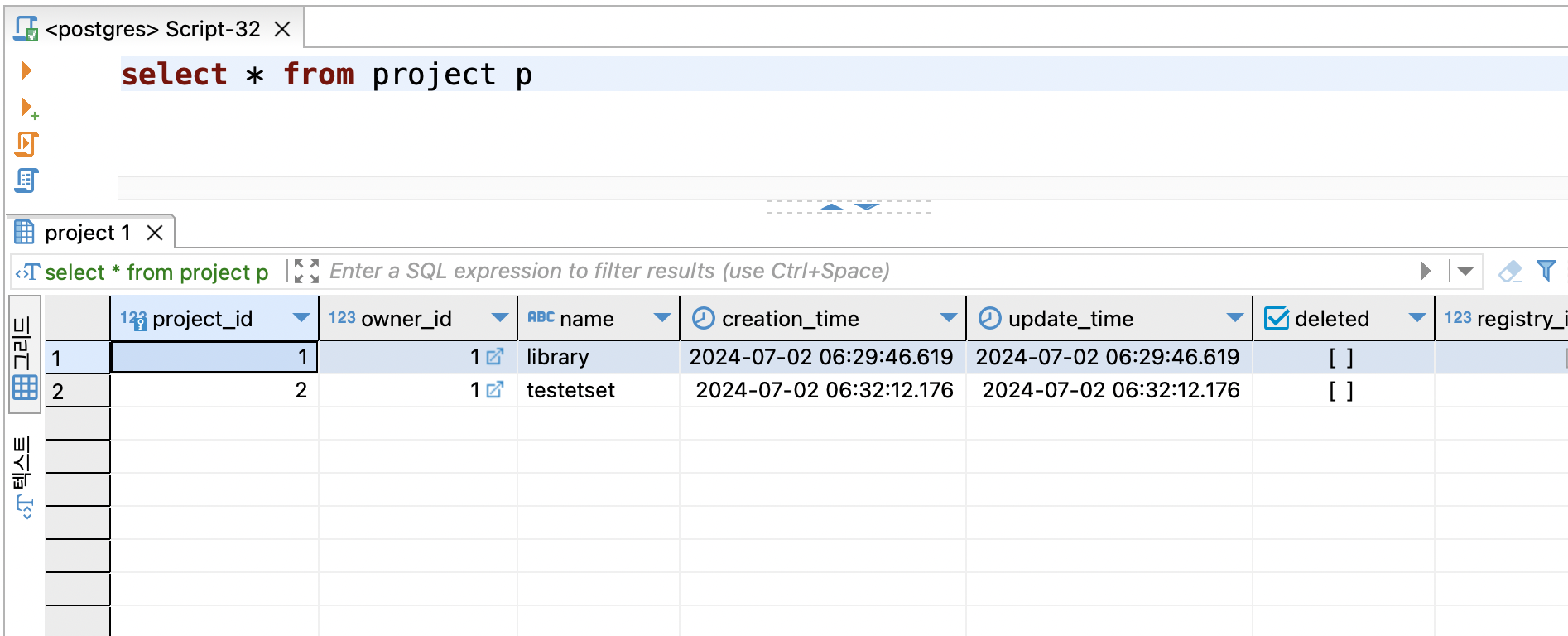

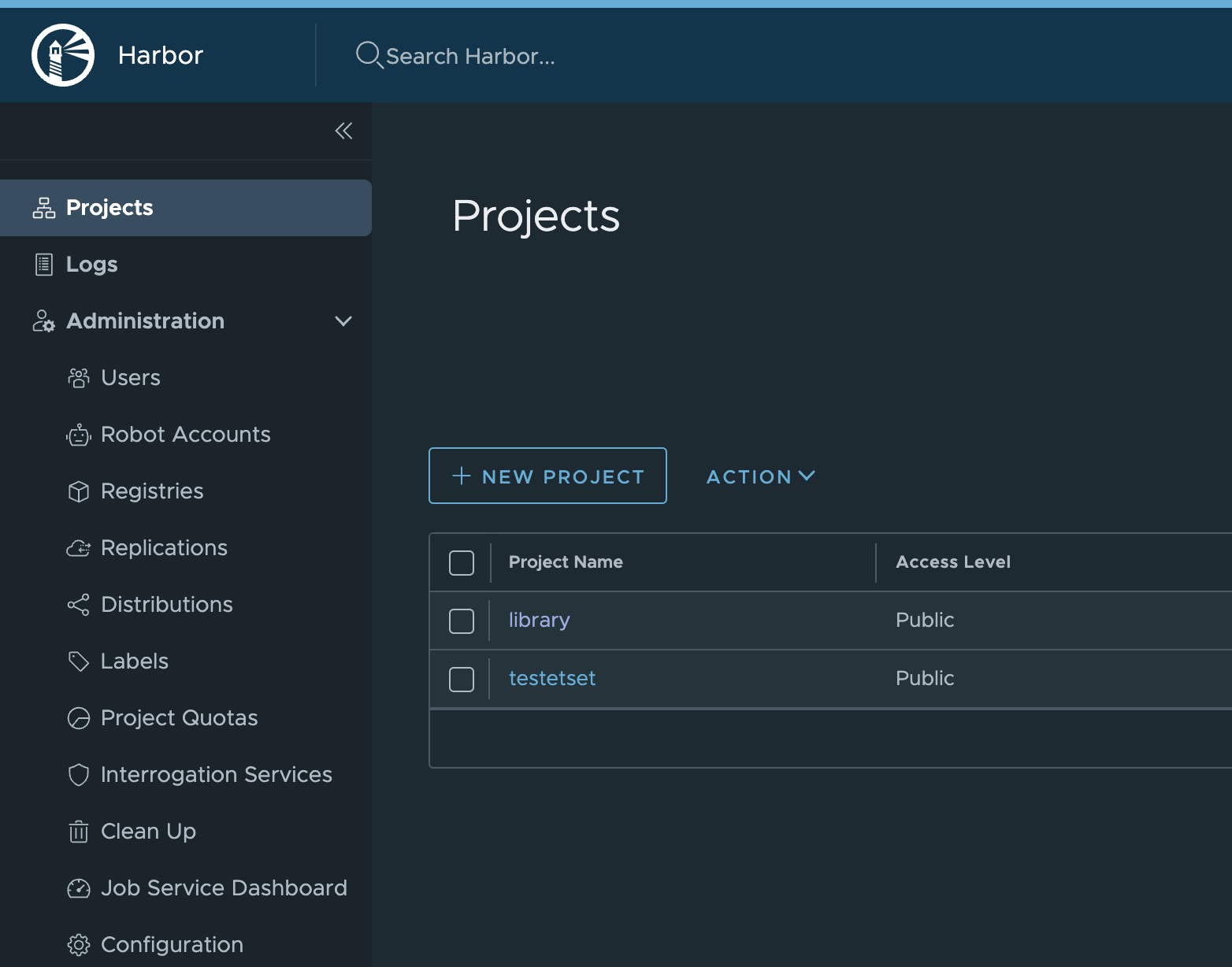

• Project 생성
